Ju88 - Tactical Poster 110

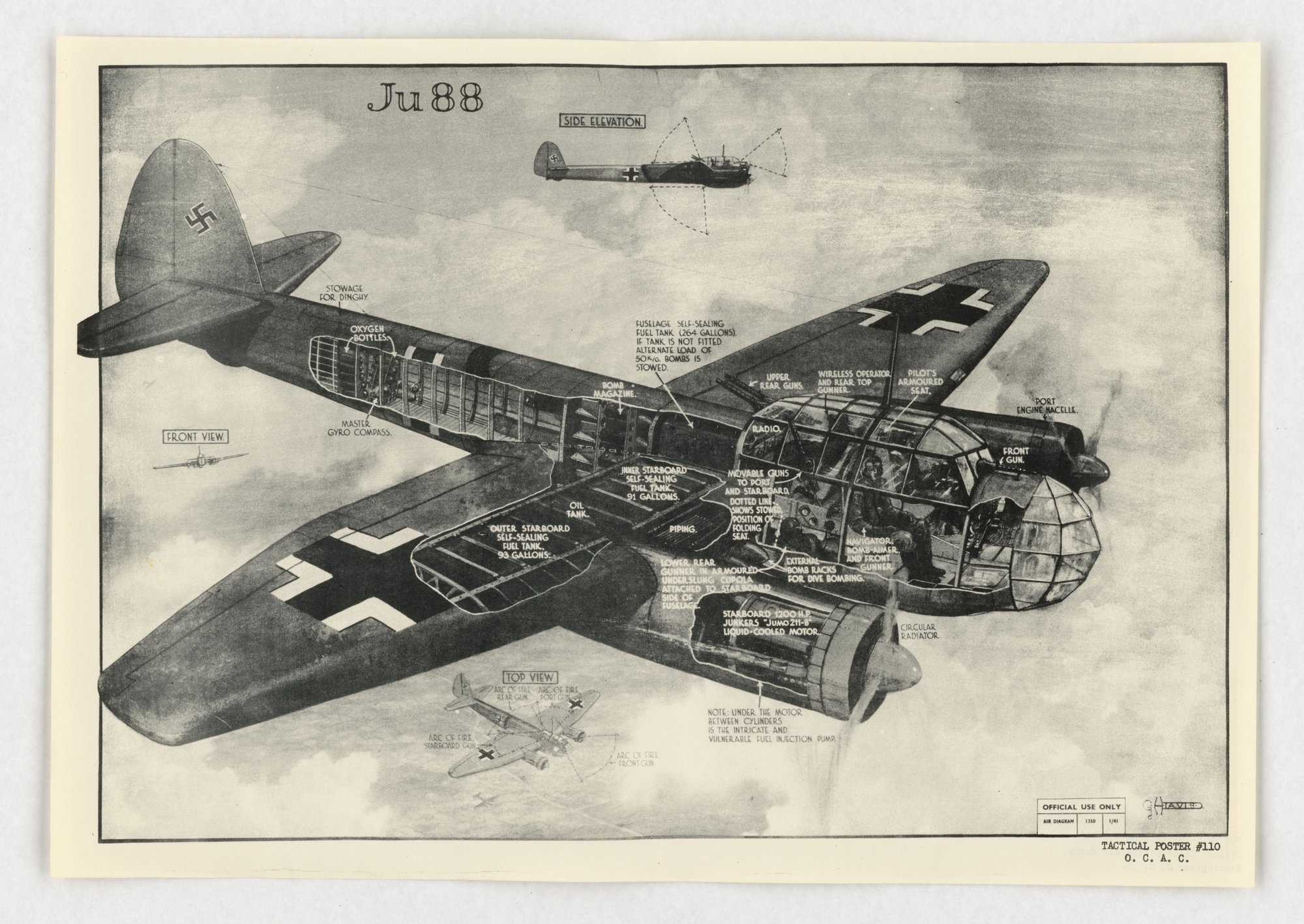

A cutaway drawing of the Junkers Ju 88 shows crew positions, guns, armour, fuel tanks and bomb load with white callouts, plus side, front and top views. It is an aircraft-recognition and vulnerability diagram marked 'Official use only', not an appeal; the closest fit is card stacking, because the callouts pick out weak points and armament for the attacker and leave out anything else about the aircraft.
Propaganda techniques used in this poster
- Date
- 1941
- Period
- Second World War
- Made by
- Air Ministry Air Diagram 1350 (copy circulated as Tactical Poster, O.C.A.C.); drawing signed G. H. Davis
- Region
- Western and Central Europe
- Country
- United Kingdom
- Medium
- Poster
- Issuer type
- State
- Regime
- Churchill Government
- Leader
- Winston Churchill
- Audience
- Own forces
- Purpose
- Warn or inform
- Theme
- War and the military
- Event
- World War II
- Leader
- Winston Churchill
- Source
- Identified Openly sourced: the speaker is who they say they are
- Source
- U.S. National Archives and Records Administration, Record Group 44, World War II Foreign Posters, retrieved October 3, 2026
- Rights
- UK Crown copyright, 1939-1945, expired; hosted by owner decision
Air Ministry Air Diagram 1350; Tactical Poster copy, O.C.A.C.. National Archives and Records Administration, 44-PF-65t.
Text on the object
Ju88 SIDE ELEVATION FRONT VIEW TOP VIEW FUSELAGE SELF-SEALING FUEL TANK (264 GALLONS). IF TANK IS NOT FITTED ALTERNATE LOAD OF 50K/G. BOMBS IS STOWED. STARBOARD 1200 H.P. JUNKERS "JUMO 211-B" LIQUID-COOLED MOTOR. NOTE: UNDER THE MOTOR BETWEEN CYLINDERS IS THE INTRICATE AND VULNERABLE FUEL INJECTION PUMP. [further callouts: bomb magazine, oxygen bottles, upper rear guns, front gun, external bomb racks for dive bombing, arcs of fire] OFFICIAL USE ONLY Air Diagram 1350 1/41 TACTICAL POSTER #110 O. C. A. C.
